Q1: How do I choose between EPDM and NBR rubber materials?
It depends entirely on the medium inside the pipe. EPDM is excellent for hot/cold water, steam, and general weather resistance. NBR (Nitrile) is the go-to choice if your pipeline carries oil, petroleum, or hydrocarbon fluids, as it prevents the rubber from swelling and degrading.
Q2: Does this expansion joint require additional gaskets for installation?

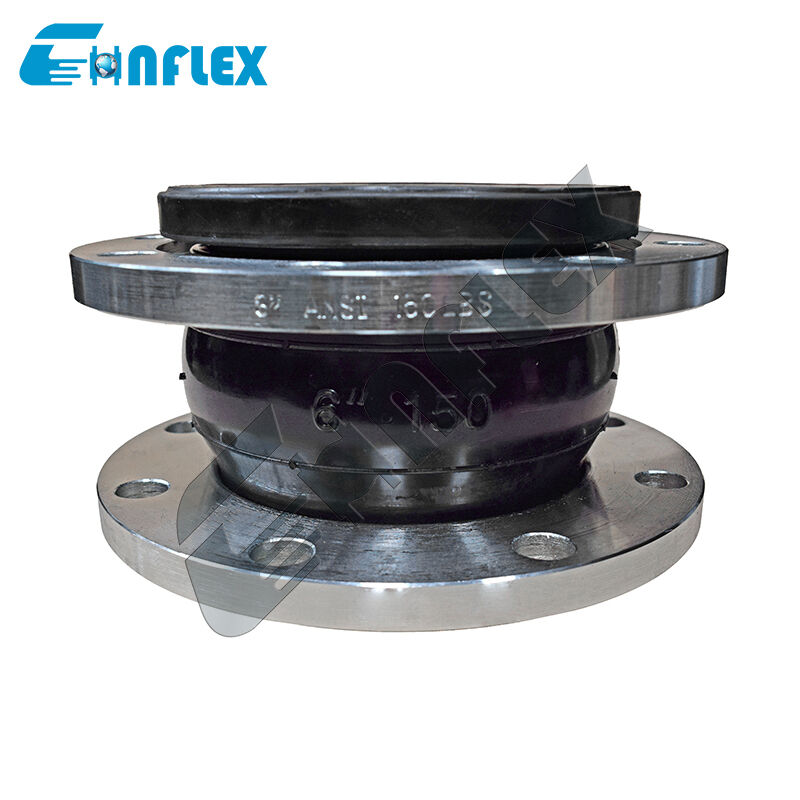

In most cases, no. The rubber bellows design features a self-sealing integrated rubber flange face. When bolted against the mating metal flange, the rubber itself acts as a high-quality gasket, providing a tight seal.
Q3: Can these joints be used in suction lines as well as discharge lines?
Yes, but for high-vacuum suction applications, we recommend a model with a vacuum ring (internal steel reinforcement) to prevent the bellows from collapsing inward. Please specify your vacuum requirements during ordering.
Q4: How do I know when it’s time to replace the joint?
You should perform regular visual inspections. Look for signs of "alligatoring" (surface cracking), ballooning, or any fluid seepage at the flange. If the rubber feels hard or brittle rather than flexible, it’s time for a replacement to avoid sudden failure.
Q5: Are control units/tie rods necessary?
Control units are highly recommended when the piping system is not properly anchored. They prevent the expansion joint from over-extending or "pulling out" due to the pressure thrust of the fluid, acting as a safety limit.
